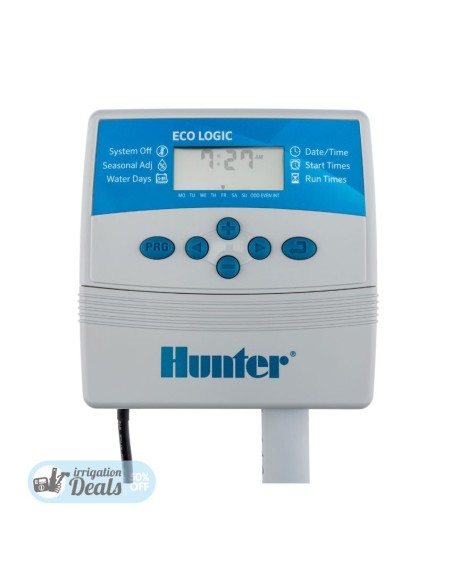

Hunter controller Eco Logic - 4 6 station indoor timer - ELC401i-E - ELC601i-E Expand

Hunter controller Eco Logic - 4 station indoor timer - ELC401i-E

Hunter Irrigation

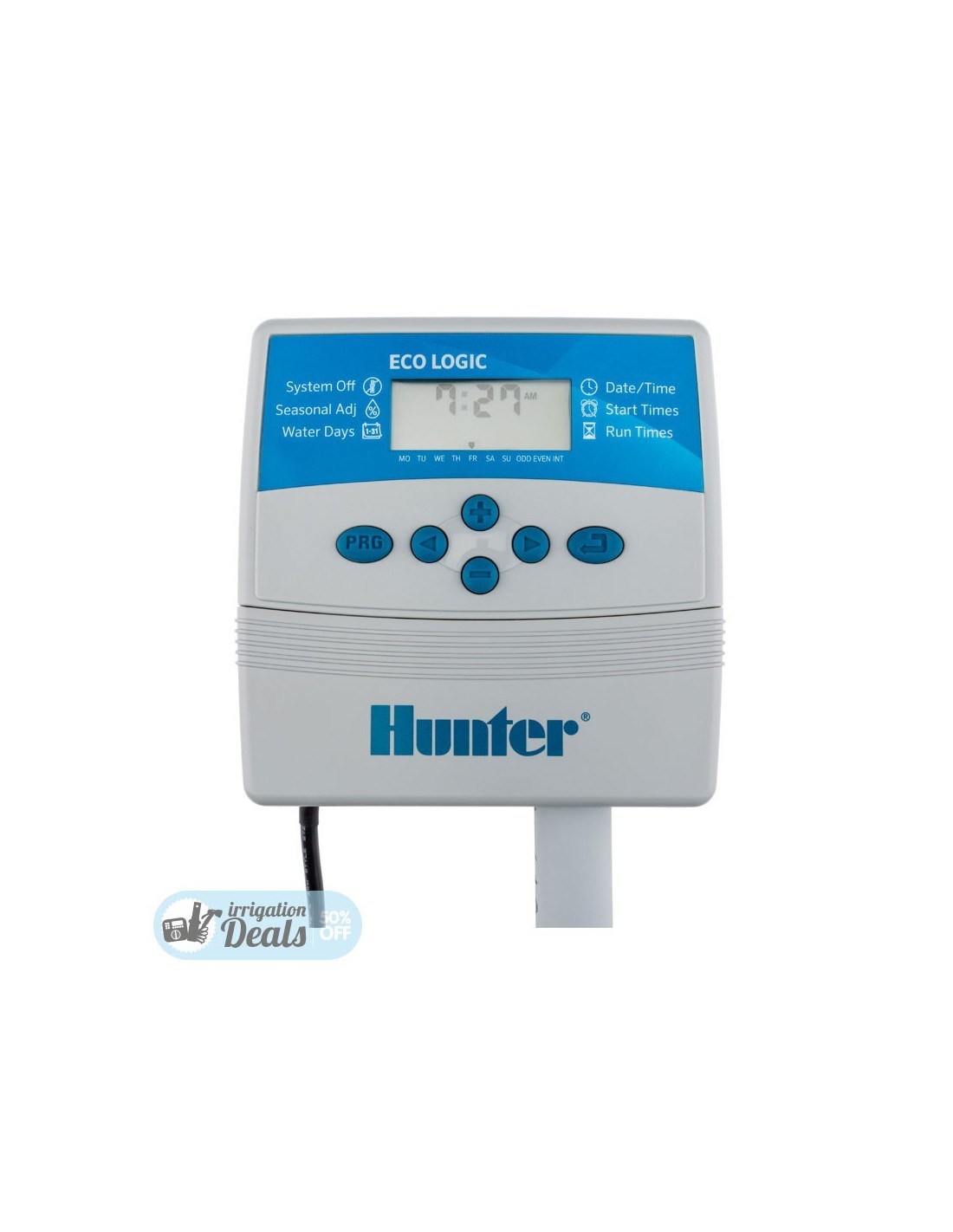

Hunter timer controller Eco Logic 4 stations indoor ELC401i-E.

Ideal for an indoor use, the timer controller Hunter Eco Logic is suitable for both residential and commercial needs.

4 and 6 zone models available.

Models are available for indoor use.

More details

30,99 €

tax incl.


The Eco-Logic ELC-401i-E timer controllers have been developed by Hunter with the priority of saving water, therefore the name Eco-Logic.
Ideal for small irrigation areas, the Eco-Logic ELC-401i-E timer control has a great value for money, excellent reliability and easy features like push button programming.
It is also compatible with weather sensors, has a 365 days calendar, seasonal adjustment from 10% to 150%, non volatile memory and each of the two programs has four start times.
Hunter Eco-Logic ELC-401i-E is a high end easy to use product offered at an unbeatable price.

Below are few of its many advanced features:

  • One button programming
  • 2 independent programs with 4 start time each
  • 365 days calendar
  • Seasonal adjustment (from 10% to 150%)
  • Weather sensors compatible
  • Non volatile memory
  • All of the above functions are easy to manage as well as program

Technical Details

  • Irrigation times: min 1 minute, max 4 hoursper station with a minimum increase of 1 min
  • Water Budget function: allows you to increase or decrease the irrigation times from 10% to 150% with 10% steps
  • Three programmes
  • Option to reduce to just 1 programme with 4 start times a day
  • 4 cycles per programme (allowing you to programme each station for 8 cycles a day)
  • Week days programming, even/odd days, gaps from 1 to 31 days
  • Large, easy accessible display
  • Manual start of a station or cycle
  • Rain sensor bypass
  • Automatic integrated short circuit protection able to exclude ONLY malfunctioning sectors


  • Input 230V
  • Output 24V
  • Short circuit protection
  • EU certification
  • Back-up battery protecting set programs
  • AM-PM or 24 hr timer display
  • Manual cycle
  • 2 programs with 4 start times per program
  • Master valve/pump circuit
  • Irrigation times from 1 min to 4 hours
  • Delay watering from 1 sec to 4 hours
  • 365 days calendar
  • Week days programming, even/odd days, cyclic days
  • Test program
  • Dimensions: 135mm L x 135H x 35D

Hunter Eco Logic ELC Controller - Guide: Programming

Stations4 Stations
Programs (up to)2
Number of Starts per Program (up to)4
Seasonal AdjustYes
Rain DelayYes
Manual On/OffYes
Dimensions (mm)135x135x35
Electrical Specifications230 Vca ± 10%, 50 Hz

Hunter Eco Logic ELC

Hunter Eco Logic controller- indoor sprinkler timer - Specifications

Download (205.58k)
