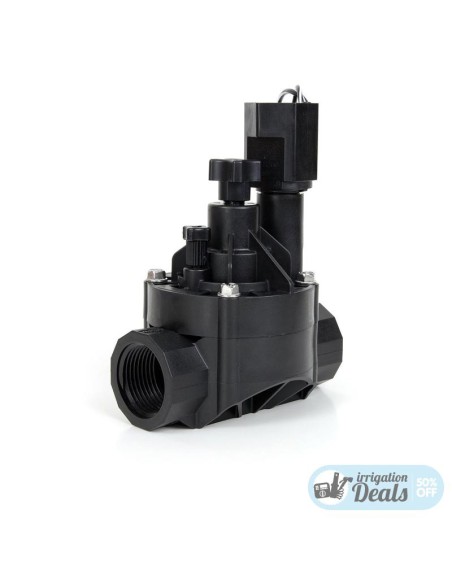

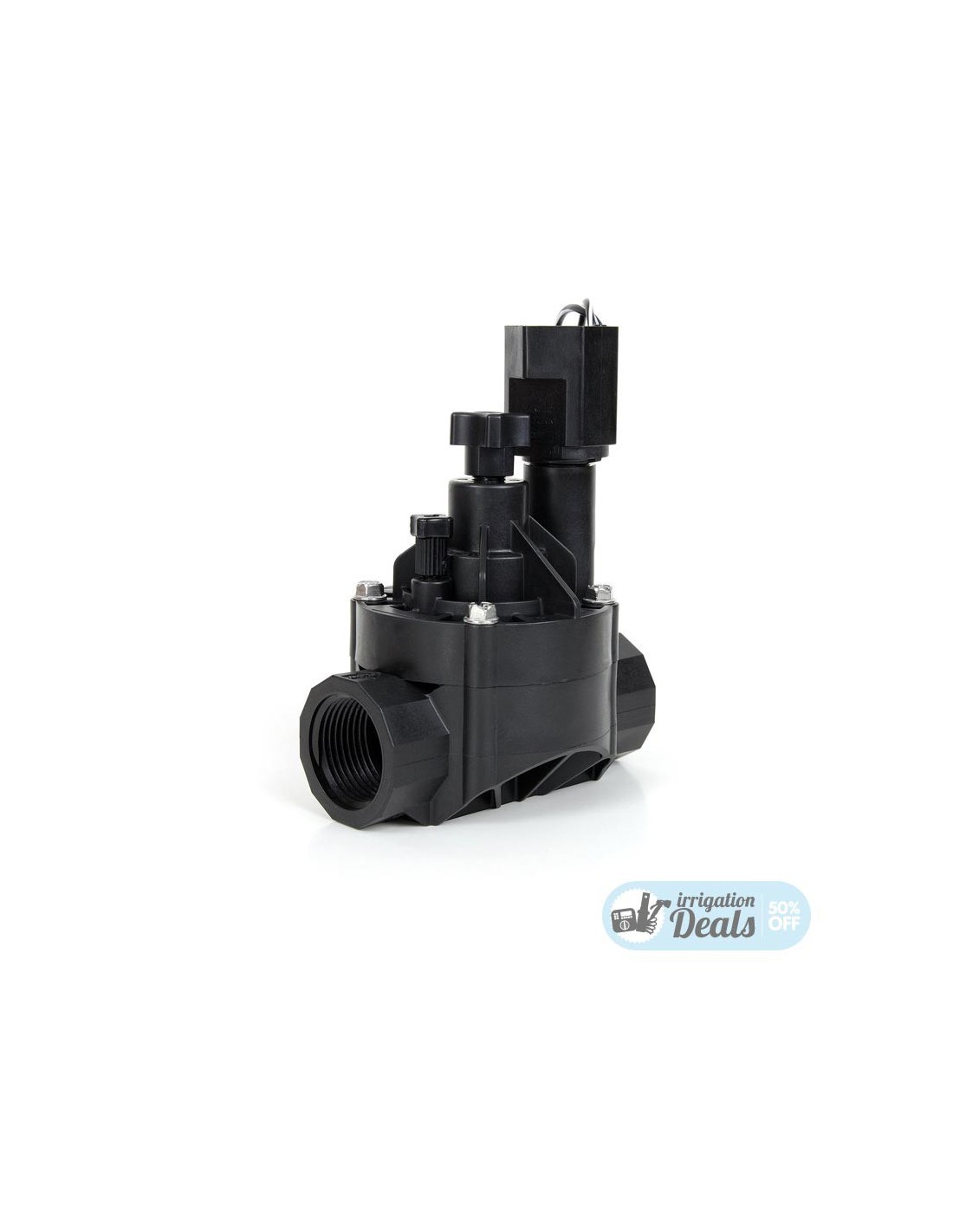

Rain Bird HV 1" 24V Solenoid Valve - Male - Female - 100 HV View larger

Rain Bird HV 1" 24V Solenoid Valve - Male - 100 HV

H05000

New product

Rain Bird HV 1" 24V Solenoid Valve
Model: Male
24V Solenoid

More details

12,50 € tax incl.

Add to wishlist

Data sheet

Valve Solenoid 24V
Valve Inlet/Outlet Female x Female
Flow Control No

More info

The Rain Bird HV 1" 24V Solenoid Valve replaces the Rain Bird Jar Top (JTV).

The Rain Bird HV 1" 24V Solenoid Valve, thanks to the compact design, can be installed in tight spaces, it is simple to use and installed and it is simply screw operated.

The eccentric diaphragm ensures smooth closing and less water hammer.

Technical Specifications:

  • Ease of access thanks to captive multi drive screws
  • Great strength glass filled polypropylene body
  • Diaphragm with stainless steel spring and self-cleaning 200 micron pilot water filter
  • External bleed for manual system flushing of dirt and debris
  • Pressure from 1 to 10.3 bar
  • Flow from 0.05 to 6.82 cubic meter per hour
  • Operating temperature: water up to 43º, ambient up to 52º
  • Dimensions: H 11.7 cm, L 11.2 cm, W 7.9 cm

Rain Bird HV Solenoid Valves - Product Guide
